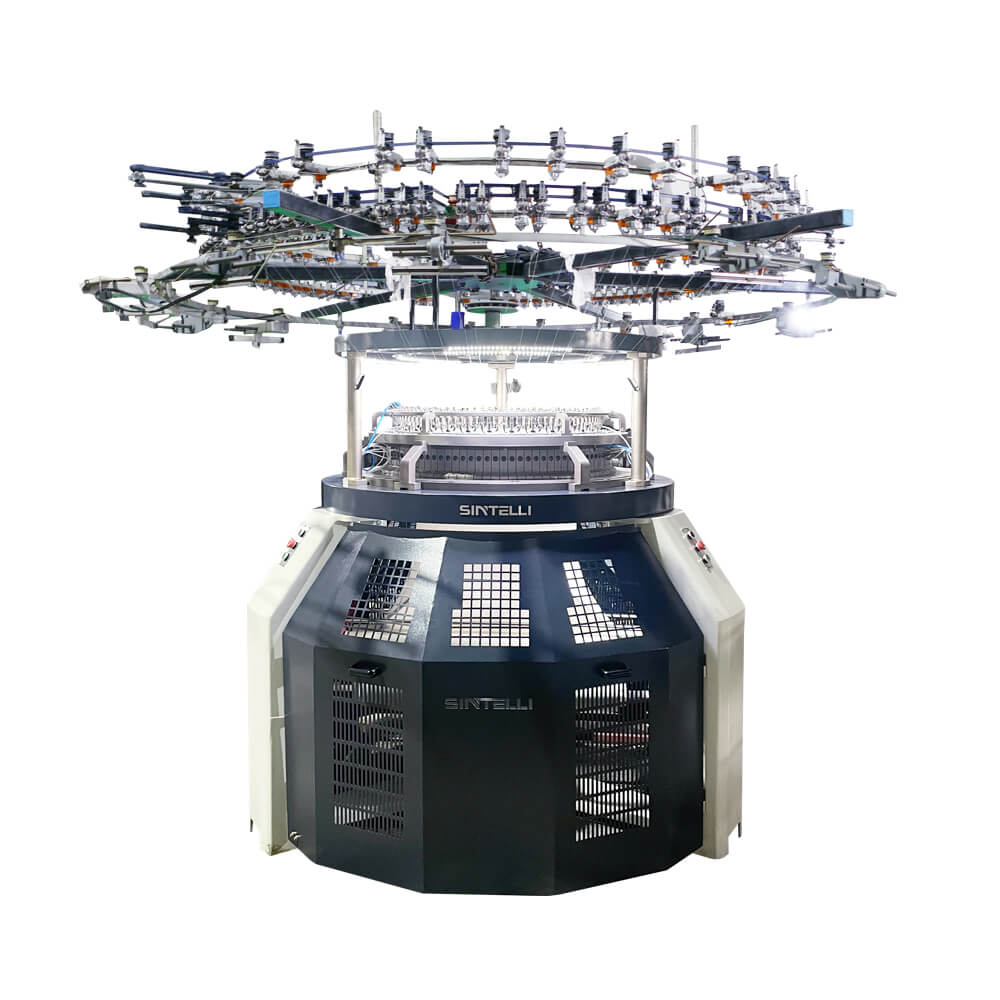

This 3-thread fleece machine offers high productivity because of the high number of feeders included, replacing older, obsolete models. The length of the wool yarn can be adjusted by changing the sinkers and cams.
Flexibly and easily knits different fabrics through replacing some heart parts，high investment utilization
Dust exhausting fans remove useless cotton fiber and improve operating efficiency. Prolong lifespan of needles and sinkers.
It can be converted into a machine for fleece, diagonal knitting, double French fleece (polar), herringbone. The front can be turned into velvet after flocking.This three-strand fleece machine offers high production due to the high number of feeders included, replacing older and obsolete models. The height of the loop can be adjusted by changing the plates and cams. Utilizes * four cam tracks for design. The result of the woven fabric is used mostly in fashion, sports and cold-proof clothing.
A multi-functional machine, just by changing a few specific parts, it can be easily converted into a single jersey or terry machine.
| MODEL | CYLINDER DIAMETER | MACHINE GAUGES | NUMBER OF FEEDERS | SPEED |
|---|---|---|---|---|
| S3TF | 30’’-38’’ | 16-22G | 90-114 F/Inch | 15-30 RPM |
Application Area: fashion(sweatshirt, nightwear), babies’ wear and in the industry of sportswear and protective clothes.
| EQUIPMENT | STANDARD | OPTION A | OPTION B |
|---|---|---|---|
| Needle | Groz Beckert, Germany | Samsung, Korea | Yantex, Korea |
| Sinker (For single knit) | Kern Libbers, Germany | Samsung, Korea | Yantex, Korea |
| High Rigidity Special Design Robust Frame | SINTELLI | / | / |
| Zirconia Yarn Guide | SINTELLI | / | / |
| Yarn Feeder | SUN Feeder (B19) | SUN Feeder (B23K) | Global OR Memminger |
| Automatic oil Lubricator | Shengsong, Taiwan | Taiguan, Taiwan | Can be customized |
| Tube Creel | Triangle Creel | Creel with tube | / |
| 4 PCS Teeth Belt | MEGADYNE | / | / |
| Micro-computer control panel (3-shift counter and 4 digital RPM counter) | SINTELLI | Can be customized | / |
| Air System | Taiguan, Taiwan | Shengsong, Taiwan | Taishan |
| Inverter | TOSHIBA, Japan | Delta, Taiwan | Yolico, Japan |
| Motor | Teco, Taiwan | Sintelli | Delta, Taiwan |
| Take Down System | Fabric open take-down system | Sintelli Folding & Rolling take-down system | / |
| Cylinder | SINTELLI Japanese High Precision Alloy Steel material | / | / |
| Machine CAM setting | Single Jersey: 4 tracks Double Jersey: Dial 2 tracks, cylinder 4 tracks | Exchange cam parts for structions | / |
| Lycra feeder | SUN WAL5-4A/B | SUN WAL2-4A/B | Memminger |
With 40+ years in the textile industry and 27 years of circular knitting machinery development and production, we are confident we can provide you with a tailored solution to you needs.
